Square Shape Carbon Steel U Bolt U Clamp Zinc Plated HDG Stainless Steel

Square Shape Carbon Steel U Bolt U Clamp Zinc Plated HDG Stainless Steel

Short Description:

Product Name: Square U Bolt

Key Words: U bolt, Square U bolt

Size: M10-M24

Material: Q195, Q235, 35K, 45#

Strength Grade: Grade 4.8, 5.8, 6.8, 8.8, A2-70, A4-80

Surface Treatment: carbon steel zinc plated, HDG, stainless steel

Thread Length: Half  Thread

Packing: Carton with pallets

Application: construction, new energy industry, auto industry, etc.

Other Features: Offer customized head mark


Product Detail

Product Tags

Description

QUICK Response

QUICK Quotation

QUICK Delivery

READY TO SHIP DELIVERY

10000+ SKU in warehouse

We Commit for RTS items:

70% items delivered within 5 days

80% items delivered within 7 days

90% items delivered within 10 days

Bulk orders, please contact customer service

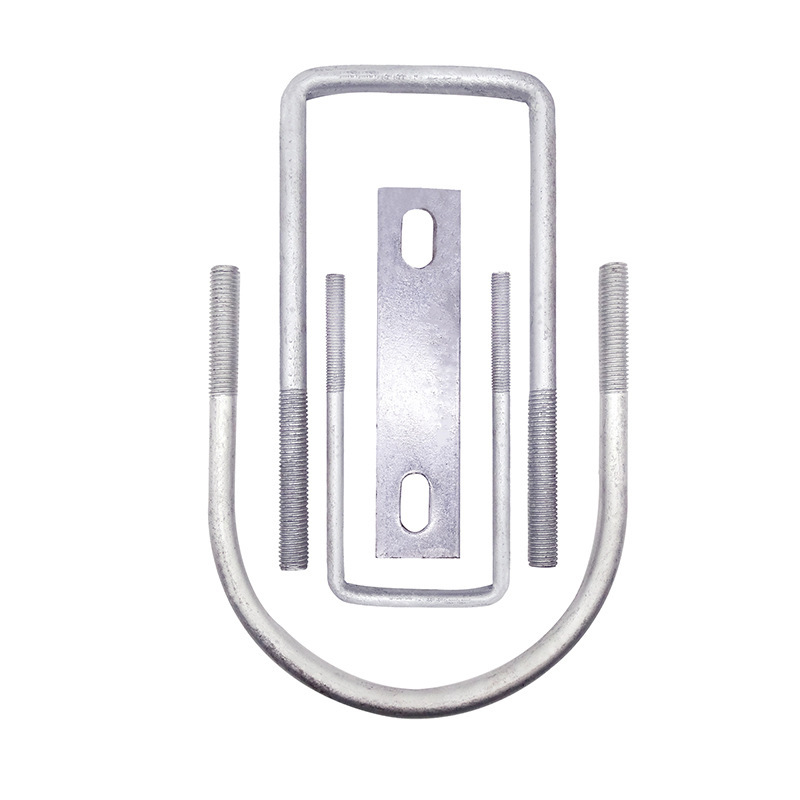

U Bolt Square shape hdg

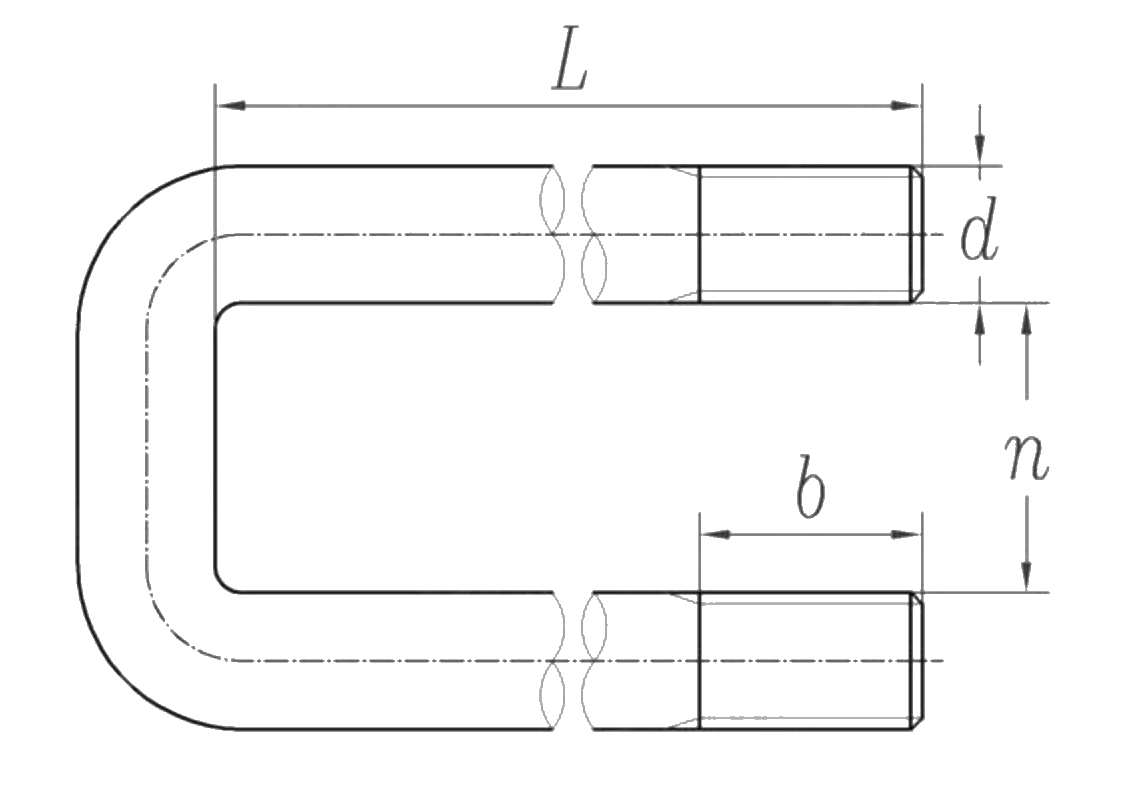

U Bolt Square shape drawings
Nominal Dia 5/16 5/16 5/16 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8
d
PP 18 18 18 16 16 16 16 16 16 16 16 16 16 16 16
L Nomical 2.688 4.688 6.688 2 2 2 4 4 4 6 6 6 8 8 8
Max 2.718 4.718 6.748 2.03 2.03 2.03 4.03 4.03 4.03 6.06 6.06 6.06 8.09 8.09 8.09
Min 2.658 4.658 6.628 1.97 1.97 1.97 3.97 3.97 3.97 5.94 5.94 5.94 7.91 7.91 7.91
n Nomical 2 2 2 2.625 4.625 6.625 2.625 4.625 6.625 4.625 6.625 8.625 4.625 6.625 8.625
Max 2.03 2.03 2.03 2.655 4.655 6.685 2.655 4.655 6.685 4.655 6.685 8.715 4.655 6.685 8.715
Min 1.97 1.97 1.97 2.595 4.595 6.565 2.595 4.595 6.565 4.595 6.565 8.535 4.595 6.565 8.535
b Max 1.56 3.06 3.06 1.56 3.06 3.81 1.56 3.06 3.81 3.06 3.81 5.685 3.06 3.81 5.685
Min 1.44 2.94 2.94 1.44 2.94 3.69 1.44 2.94 3.69 2.94 3.69 5.565 2.94 3.69 5.565

Detail description

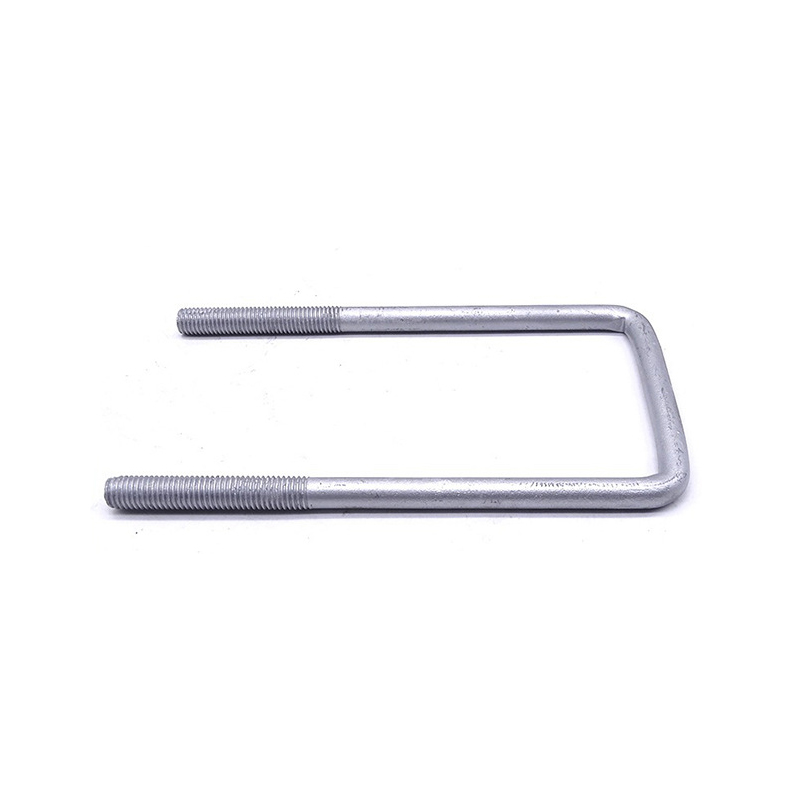

U Bolt Square shape 8
U Bolt Square shape 6

Please let us know the specific sizes you need so that we could offer the best solutions.

U-shaped bolt of hot-dip galvanized is mainly used in photovoltaic industry, wind power industry and other new energy industry, construction installation.

U-shaped bolt, namely riding bolt, English name is U-bolt, non-standard parts, because of the shape of U-shaped, the two ends of the thread can be combined with the nut, mainly used to fix the pipe such as water pipe or sheet such as car spring, because of the way of fixing objects like people riding on a horse, so called riding bolt.

U-bolt is widely used, the main uses: construction installation, mechanical parts connection, vehicles, ships, Bridges, tunnels, railways and so on.

Main shapes: semicircle, square right Angle, triangle, oblique triangle, etc

1. Material characteristics, density, bending strength, impact toughness, compression strength, elastic modulus, tensile strength, temperature resistance, color according to the use of environment.
2. Materials commonly used are carbon steel Q235A Q345B alloy steel stainless steel and so on. The stainless steel materials are 201, 304, 321, 304L, 316, 316L.
3. Standard for U-bolts: DIN3570.
4. The material
U-bolts are divided into carbon steel Q235, Q345 alloy steel, stainless steel 201 304 316, that is, carbon steel and stainless steel
