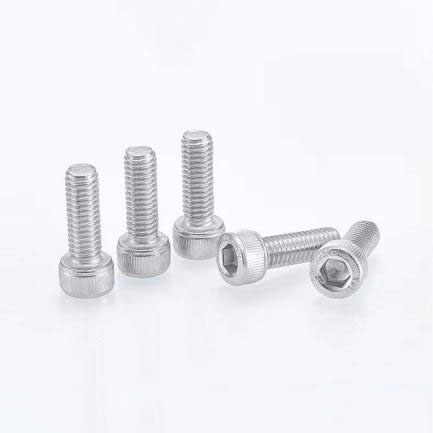

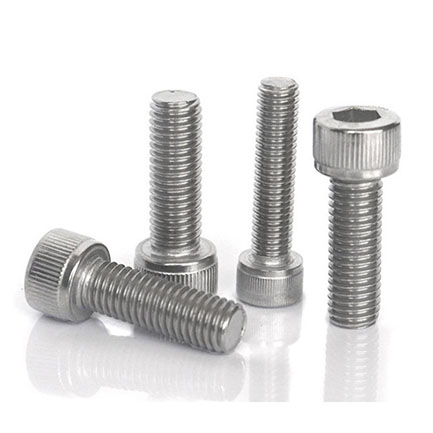

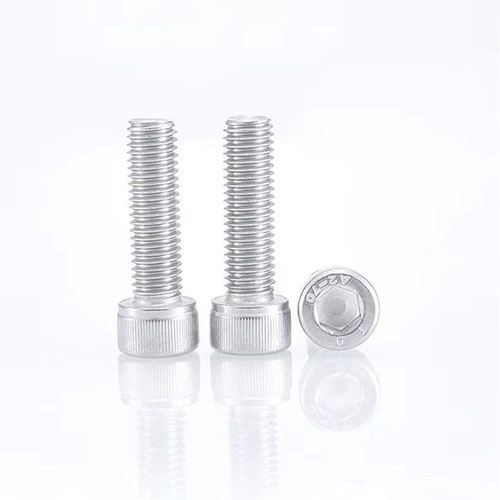

DIN912 Hex Socket Cup Head Screw SUS304 SUS316 SUS201

Short Description:

Standard: DIN912

Product Name: Hex Socket Cup Head Screw

Key Words: DIN 912, Cup head screw

Size: M3-M42

Material: SUS304, SUS316, SUS201

Stength Grade: A2-70, A4-80

Surface Treatment: Stainless Steel Plain

Thread Length: Full Thread/ Half Thread

Thread Type: Coarse/Fine

Packing: Bag/Carton/Wooden case

Other Features: Offer customized head mark

Send email to us

Product Detail

Product Tags

Description

QUICK Response

QUICK Quotation

QUICK Delivery

READY TO SHIP DELIVERY

10000+ SKU in warehouse

We Commit for RTS items:

70% items delivered within 5 days

80% items delivered within 7 days

90% items delivered within 10 days

Bulk orders, please contact customer service

d		M1.4	M1.6	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)	M20
P	Coarse thread	0.3	0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5
	Fine thread	/	/	/	/	/	/	/	/	1	1.25	1.5	1.5	1.5	2	2
	Very Fine thread	/	/	/	/	/	/	/	/	/	1	1.25	/	/	1.5	1.5
b	Reference value	14	15	16	17	18	20	22	24	28	32	36	40	44	48	52
d_k	Max （Smooth）	2.6	3	3.8	4.5	5.5	7	8.5	10	13	16	18	21	24	27	30
	Max （Knurl*）	2.74	3.14	3.98	4.68	5.68	7.22	8.72	10.22	13.27	16.27	18.27	21.33	24.33	27.33	30.33
	Min	2.46	2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67
d_s	Max	1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18	20
d_s	Min	1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78	9.78	11.73	13.73	15.73	17.73	19.67
k	Max	1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18	20
k	Min	1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57	13.57	15.57	17.57	19.48
s	Nominal	1.3	1.5	1.5	2	2.5	3	4	5	6	8	10	12	14	14	17
	Min	1.32	1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025	12.032	14.032	14.032	17.05
	Max	1.36	1.56	1.56	2.06	2.58	3.08	4.095	5.14	6.14	8.175	10.175	12.212	14.212	14.212	17.23
t	Min	0.6	0.7	1	1.1	1.3	2	2.5	3	4	5	6	7	8	9	10
Thread length=b		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

d		(M22)	M24	(M27)	M30	(M33)	M36	M42	M48	M56	M64	M72	M80	M90	M100
P	Coarse thread	2.5	3	3	3.5	3.5	4	4.5	5	5.5	6	6	6	6	6
	Fine thread	2	2	2	2	2	3	3	3	4	4	4	4	4	4
	Very Fine thread	1.5	/	/	/	/	/	/	/	/	/	/	/	/	/
b	Reference value	56	60	66	72	78	84	96	108	124	140	156	172	192	212
d_k	Max （Smooth）	33	36	40	45	50	54	63	72	84	96	108	120	135	150
	Max （Knurl*）	33.39	36.39	40.39	45.39	50.39	54.46	63.46	72.46	84.54	96.54	108.54	120.54	135.63	150.63
	Min	32.61	35.61	39.61	44.61	49.61	53.54	62.54	71.54	83.46	95.46	107.46	119.46	134.37	149.37
d_s	Max	22	24	27	30	33	36	42	48	56	64	72	80	90	100
d_s	Min	21.67	23.67	26.67	29.67	32.61	35.61	41.61	47.61	55.54	63.54	71.54	79.54	89.46	99.46
k	Max	22	24	27	30	33	36	42	48	56	64	72	80	90	100
k	Min	21.48	23.48	26.48	29.48	32.38	35.38	41.38	47.38	56.26	63.26	71.26	79.26	89.13	99.13
s	Nominal	17	19	19	22	24	27	32	36	41	46	55	65	75	85
	Min	17.05	19.065	19.065	22.065	24.065	27.065	32.08	36.08	41.08	46.08	55.1	65.1	75.1	85.12
	Max	17.23	19.275	19.275	22.275	24.275	27.275	32.33	36.33	41.33	46.33	55.4	65.4	75.4	85.47
t	Min	11	12	13.5	15.5	18	19	24	28	34	38	43	48	54	60
Thread length=b		-	-	-	-	-	-	-	-	-	-	-	-	-	-

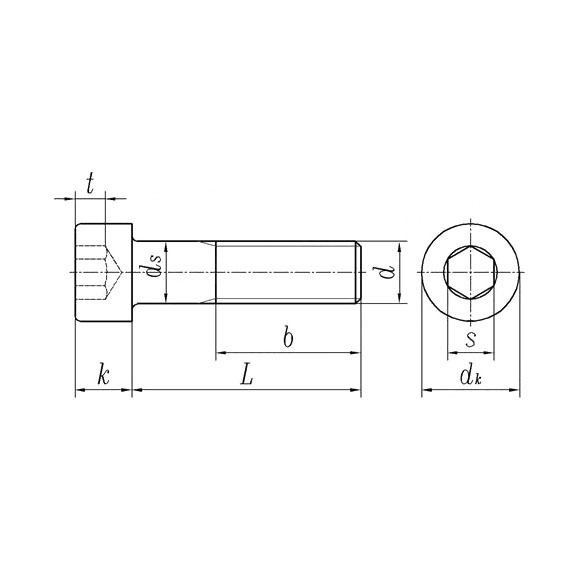

Detail drawing

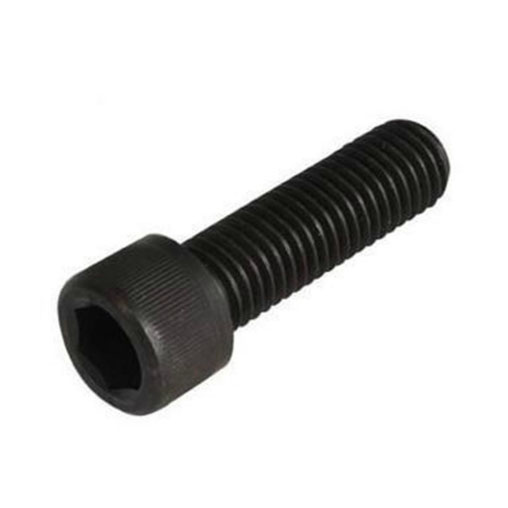

Hexagon socket head screws generally refer to socket head cap screws.

Cylinder head socket head cap screws, also referred to as socket head cap screws, cup head screws, and socket head cap screws, have different names, but the meanings are the same. Generally, there are 4.8 grades, 8.8 grades, 10.9 grades, and 12.9 grades for commonly used socket head cap screws. Also called hexagon socket head cap screws, also known as hexagon socket head cap bolts. Its head is a hexagonal head and a cylindrical head. According to the material, there are stainless steel and iron. The stainless steel includes stainless steel SUS202 hexagon socket head cap screws, which are ordinary stainless steel, stainless steel SUS304 hexagon socket head cap screws, and stainless steel SUS316 hexagon socket head cap screws. According to the strength grade of hexagon socket head screws, there are 4.8 hexagon socket screws, 8.8 hexagon socket screws, 10.9 hexagon socket screws, and 12.9 hexagon socket screws. Grade 8.8-12.9 hexagon socket head cap screws are called high-strength and high-grade socket head bolts.
