DIN912 Hex Socket Cup Head Screw Stainless steel 304 316

DIN912 Hex Socket Cup Head Screw Stainless steel 304 316

Short Description:

Standard: DIN912

Product Name: Hex Socket Cap Head Screw

Key Words: DIN912, Hex Socket Cap head screw

Size: M3-M42

Material: SUS 304, SUS 316

Stength Grade: A2-70, A4-80

Surface Treatment: Plain

Thread Length: Full Thread/ Half Thread

Thread Type: Coarse/Fine

Packing: Bag/Carton/Wooden case

Other Features: Offer customized head mark


Product Detail

Product Tags

Description

QUICK Response

QUICK Quotation

QUICK Delivery

READY TO SHIP DELIVERY

10000+ SKU in warehouse

We Commit for RTS items:

70% items delivered within 5 days

80% items delivered within 7 days

90% items delivered within 10 days

Bulk orders, please contact customer service

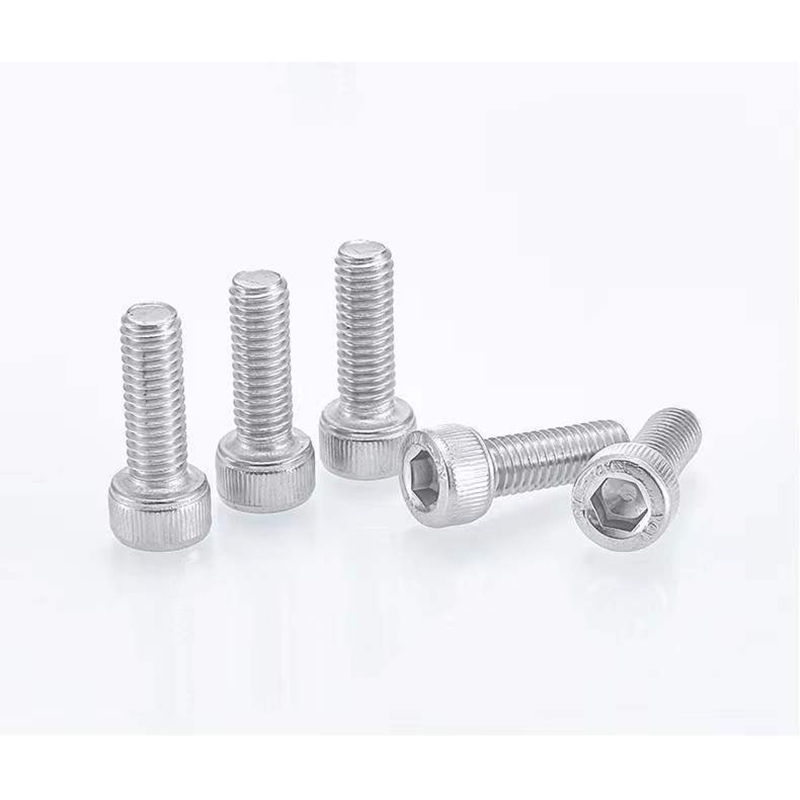

DIN912 7

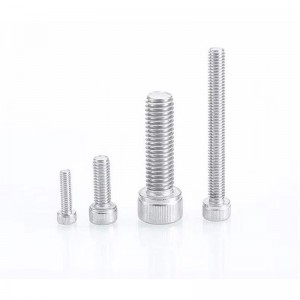

DIN912 Hex Socket Cup Head Screw Grade 12.9 Black Oxide5

d

M1.4

M1.6

M2

M2.5

M3

M4

M5

M6

M8

M10

M12

(M14)

M16

(M18)

M20

P

Coarse thread

0.3

0.35

0.4

0.45

0.5

0.7

0.8

1

1.25

1.5

1.75

2

2

2.5

2.5

Fine thread

/

/

/

/

/

/

/

/

1

1.25

1.5

1.5

1.5

2

2

Very Fine thread

/

/

/

/

/

/

/

/

/

1

1.25

/

/

1.5

1.5

b

Reference value

14

15

16

17

18

20

22

24

28

32

36

40

44

48

52

dk

Max (Smooth)

2.6

3

3.8

4.5

5.5

7

8.5

10

13

16

18

21

24

27

30

Max (Knurl*)

2.74

3.14

3.98

4.68

5.68

7.22

8.72

10.22

13.27

16.27

18.27

21.33

24.33

27.33

30.33

Min

2.46

2.86

3.62

4.32

5.32

6.78

8.28

9.78

12.73

15.73

17.73

20.67

23.67

26.67

29.67

ds

Max

1.4

1.6

2

2.5

3

4

5

6

8

10

12

14

16

18

20

Min

1.26

1.46

1.86

2.36

2.86

3.82

4.82

5.82

7.78

9.78

11.73

13.73

15.73

17.73

19.67

k

Max

1.4

1.6

2

2.5

3

4

5

6

8

10

12

14

16

18

20

Min

1.26

1.46

1.86

2.36

2.86

3.82

4.82

5.7

7.64

9.64

11.57

13.57

15.57

17.57

19.48

s

Nominal

1.3

1.5

1.5

2

2.5

3

4

5

6

8

10

12

14

14

17

Min

1.32

1.52

1.52

2.02

2.52

3.02

4.02

5.02

6.02

8.025

10.025

12.032

14.032

14.032

17.05

Max

1.36

1.56

1.56

2.06

2.58

3.08

4.095

5.14

6.14

8.175

10.175

12.212

14.212

14.212

17.23

t

Min

0.6

0.7

1

1.1

1.3

2

2.5

3

4

5

6

7

8

9

10

Thread length=b

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

d

(M22)

M24

(M27)

M30

(M33)

M36

M42

M48

M56

M64

M72

M80

M90

M100

P

Coarse thread

2.5

3

3

3.5

3.5

4

4.5

5

5.5

6

6

6

6

6

Fine thread

2

2

2

2

2

3

3

3

4

4

4

4

4

4

Very Fine thread

1.5

/

/

/

/

/

/

/

/

/

/

/

/

/

b

Reference value

56

60

66

72

78

84

96

108

124

140

156

172

192

212

dk

Max (Smooth)

33

36

40

45

50

54

63

72

84

96

108

120

135

150

Max (Knurl*)

33.39

36.39

40.39

45.39

50.39

54.46

63.46

72.46

84.54

96.54

108.54

120.54

135.63

150.63

Min

32.61

35.61

39.61

44.61

49.61

53.54

62.54

71.54

83.46

95.46

107.46

119.46

134.37

149.37

ds

Max

22

24

27

30

33

36

42

48

56

64

72

80

90

100

Min

21.67

23.67

26.67

29.67

32.61

35.61

41.61

47.61

55.54

63.54

71.54

79.54

89.46

99.46

k

Max

22

24

27

30

33

36

42

48

56

64

72

80

90

100

Min

21.48

23.48

26.48

29.48

32.38

35.38

41.38

47.38

56.26

63.26

71.26

79.26

89.13

99.13

s

Nominal

17

19

19

22

24

27

32

36

41

46

55

65

75

85

Min

17.05

19.065

19.065

22.065

24.065

27.065

32.08

36.08

41.08

46.08

55.1

65.1

75.1

85.12

Max

17.23

19.275

19.275

22.275

24.275

27.275

32.33

36.33

41.33

46.33

55.4

65.4

75.4

85.47

t

Min

11

12

13.5

15.5

18

19

24

28

34

38

43

48

54

60

Thread length=b

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Detail drawing

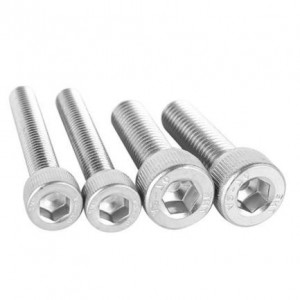

DIN912 Hex Socket Cup Head Screw SUS304 SUS316 SUS20101
SUS 304 Stainless steel 304 DIN912 hex socket cup head screw

There are many types of screws, one is called hexagon socket screws. When purchasing, the salesperson will also ask you which type to choose. Originally, there are many classifications of hexagon socket screws.

There are several types of hexagon socket screws
1. There is a type of hexagon socket screw called pan head. After the screw is installed, its head protrudes on the surface, which makes it more convenient to screw the screw later. This product can be seen on some household appliances.

2.There are countersunk head hexagon socket screws, which means that it will not protrude from the surface after screwing, and it will not affect the appearance. However, if there is a problem that is difficult to screw when screwing, the screw cannot be started.

3.There are also cylindrical head hexagon socket screws, which are similar to the second type of screws. They are relatively strong and require a wrench of the corresponding specification to remove the screws. Generally speaking, they are used on machine tools.

The screw is rusted and can't be unscrewed, what should I do?
In life, many friends have encountered similar problems. Once the screws are rusted, no matter how much effort is used, they cannot be unscrewed. Because the screw is exposed to the air, if the surrounding environment is relatively humid, after a long time, it is prone to rust. In fact, don't use brute force, you need to master the skills of screwing.

Tap it first, tap the corroded screw with a wrench, and tap the handle lightly, because if the corroded part is loose, it can be unscrewed later.

If it still doesn't work after tapping, you can drop a small amount of oil, and then rotate it gently with the wrench a few times. If you don't have oil at home, you can also use Coke because it will remove rust.

Packing

Packaging and delivery
Packaging and delivery1
Packaging and delivery2
Packaging and deliver3
Packaging and delivery4
Packaging and delivery3
