ASME B18.5 Round Head Square Neck Carriage Bolt A307 SAE J429 F468 F593

ASME B18.5 Round Head Square Neck Carriage Bolt A307 SAE J429 F468 F593

Short Description:

Standard: ASME B18.5 Carriage Bolt

Product Name: ASME B18.5 Round head square neck Carriage Bolt

Key Words: ASME B18.5, Round head square neck bolt, carriage bolt, UNC bolt

Size: 10#-1″,

Material: ASTM standard and ASME standard

Strength Grade: A307, SAE J429, F468, F593

Surface Treatment: Black Oxide/ Zinc Plated

Thread Length: Full Thread/ Half Thread

Packing: Carton with pallets

Other Features: Offer customized head mark


Product Detail

Product Tags

Description

QUICK Response

QUICK Quotation

QUICK Delivery

READY TO SHIP DELIVERY

10000+ SKU in warehouse

We Commit for RTS items:

70% items delivered within 5 days

80% items delivered within 7 days

90% items delivered within 10 days

Bulk orders, please contact customer service

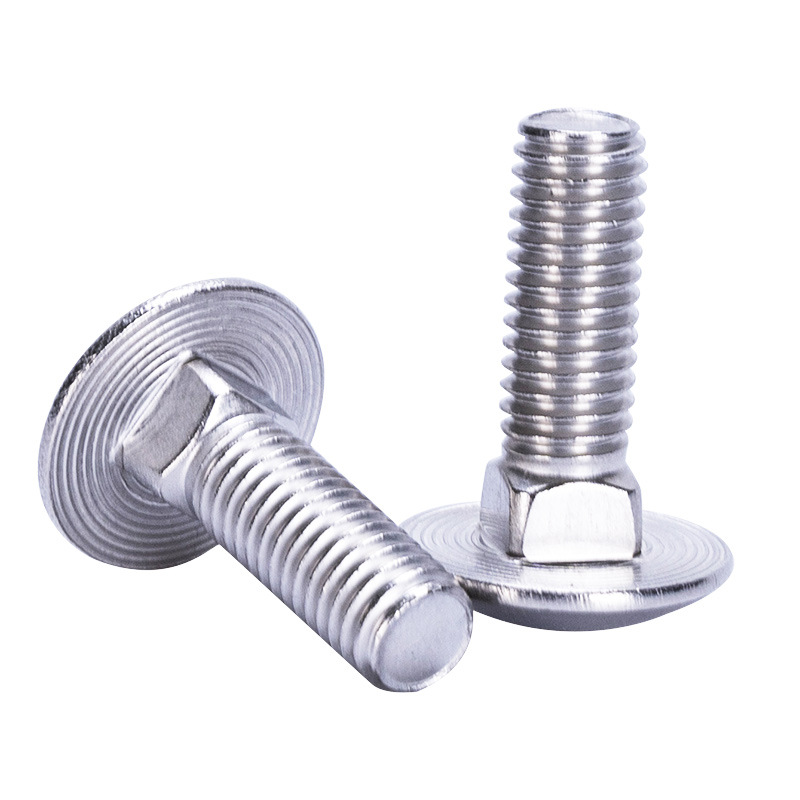

Carriage Bolt Zinc Plated 5

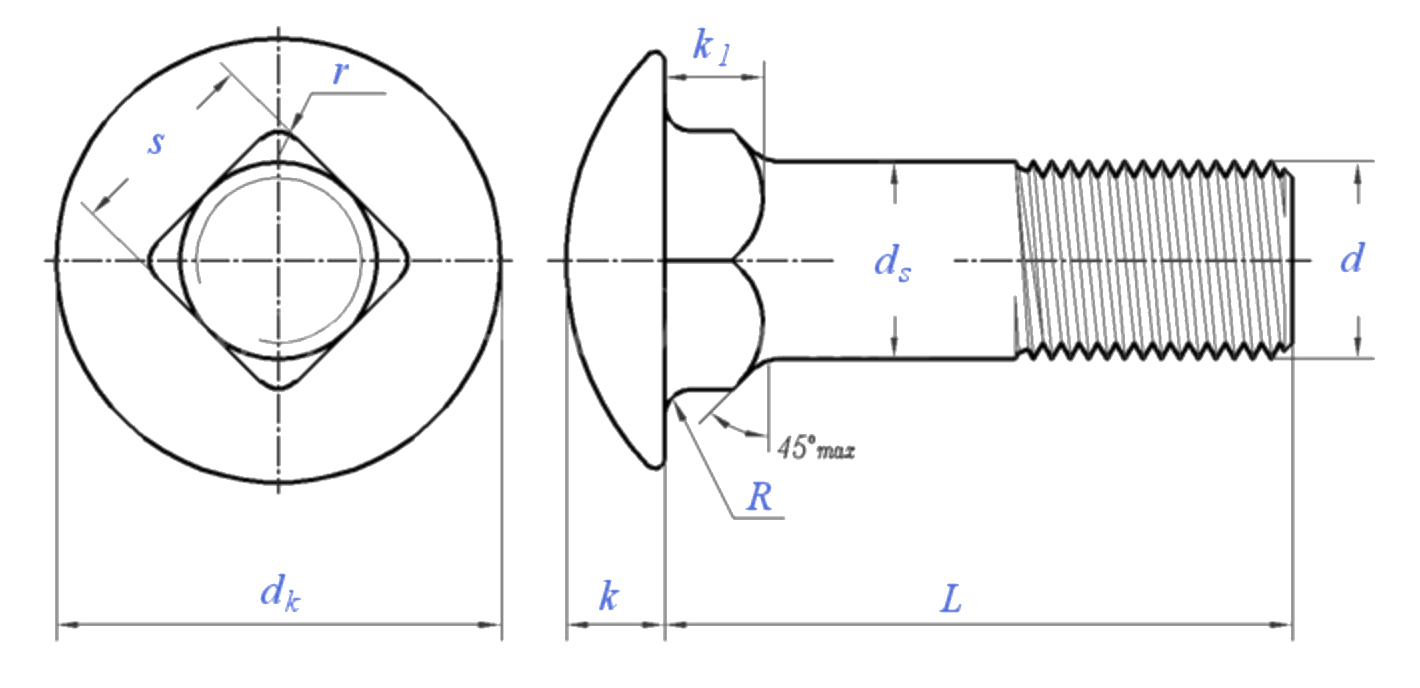

ASME B18.5 Carriage Bolt drawings
Thread Dia
d
10# 1/4 5/16 3/8 7/16 1/2 5/8 3/4 7/8 1
d
PP UNC
ds Max
Min
dk Max
Min
k Max
Min
s Max
Min
k1 Max
Min
r
R
0.1900 0.2500 0.3125 0.3750 0.4375 0.5000 0.6250 0.7500 0.8750 1.0000
24 20 18 16 14 13 11 10 9 8
0.199 0.260 0.324 0.388 0.452 0.515 0.642 0.768 0.895 1.022
0.159 0.213 0.272 0.329 0.385 0.444 0.559 0.678 0.795 0.910
0.469 0.594 0.719 0.844 0.969 1.094 1.344 1.594 1.844 2.094
0.436 0.563 0.688 0.782 0.907 1.032 1.219 1.469 1.719 1.969
0.114 0.145 0.176 0.208 0.239 0.270 0.344 0.406 0.459 0.531
0.094 0.125 0.156 0.188 0.219 0.250 0.313 0.375 0.438 0.500
0.199 0.260 0.324 0.388 0.452 0.515 0.642 0.768 0.895 1.022
0.185 0.245 0.307 0.368 0.431 0.492 0.616 0.741 0.865 0.990
0.125 0.156 0.187 0.219 0.250 0.281 0.344 0.406 0.469 0.531
0.094 0.125 0.156 0.188 0.219 0.250 0.313 0.375 0.438 0.500
0.031 0.031 0.031 0.047 0.047 0.047 0.078 0.078 0.094 0.094
0.031 0.031 0.031 0.031 0.031 0.031 0.062 0.062 0.062 0.062

Detail description

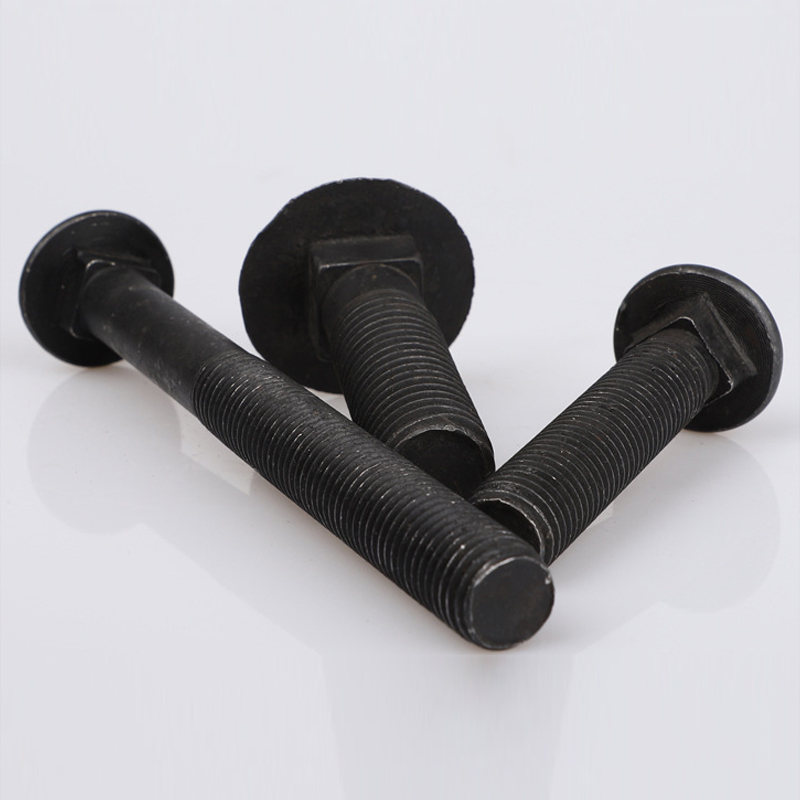

Carriage Bolt Black Oxide 3

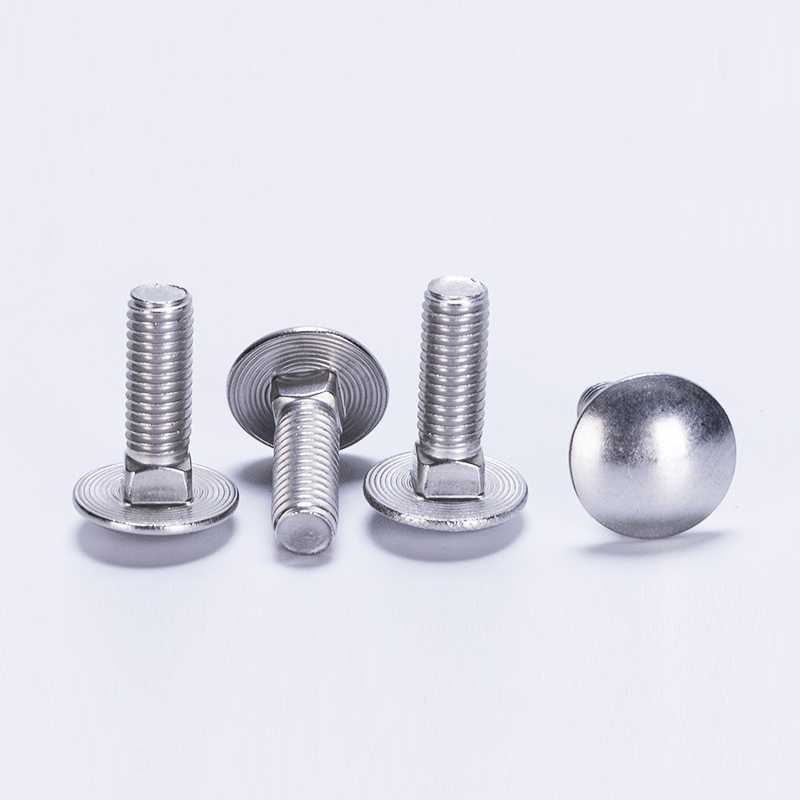

Carriage Bolt Zinc Plate 8

The UN standard Carriage bolt is ASME B18.5 round head square neck bolt. The strength grade has ASTM A307, SAE J429, F468, F593. According to the thread type, there's coarse thread and fine thread, the former is more common.  And the ASME B18.5 specifies the outer appearance dimensions and there are half thread and full thread. The grade has grade 2, grade 5, grade 8 and so on. The material has carbon steel and stainless steel. The surface is zinc plated, black oxide, HDG, and plain stainless steel. The smallest diameter is 10#, that is around 4.8mm and the largest size is 1". There is 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 7/8, 1" diameter.

Materials: carbon steel, stainless steel

Nominal diameter: 10#--1"
Length: 15 mm - 300 mm
Surface treatment method: zinc plating, chrome plating, copper plating, black oxide

Packing

Packaging and delivery
Packaging and delivery1
Packaging and delivery2
Packaging and deliver3
WechatIMG11845
Packaging and delivery3
